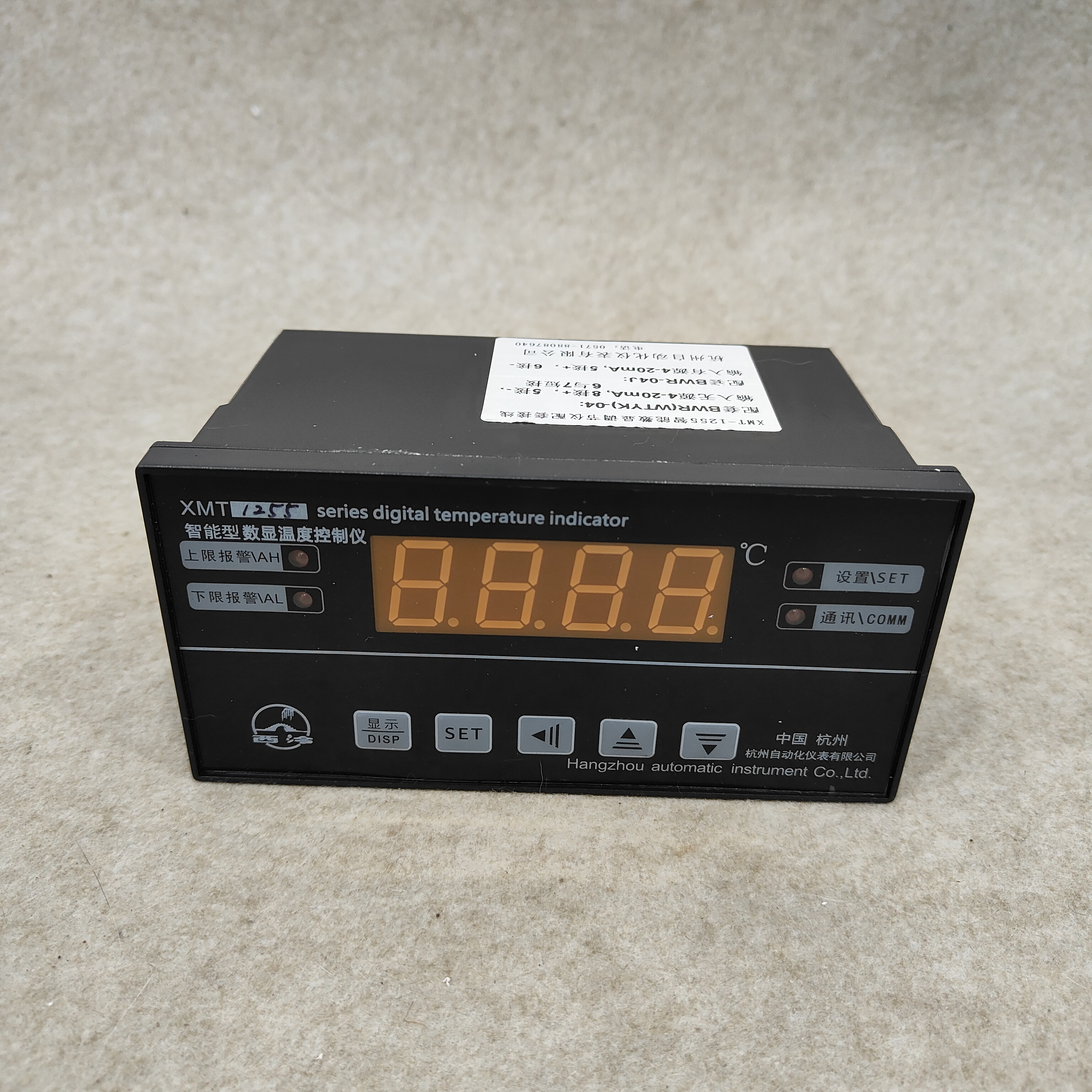

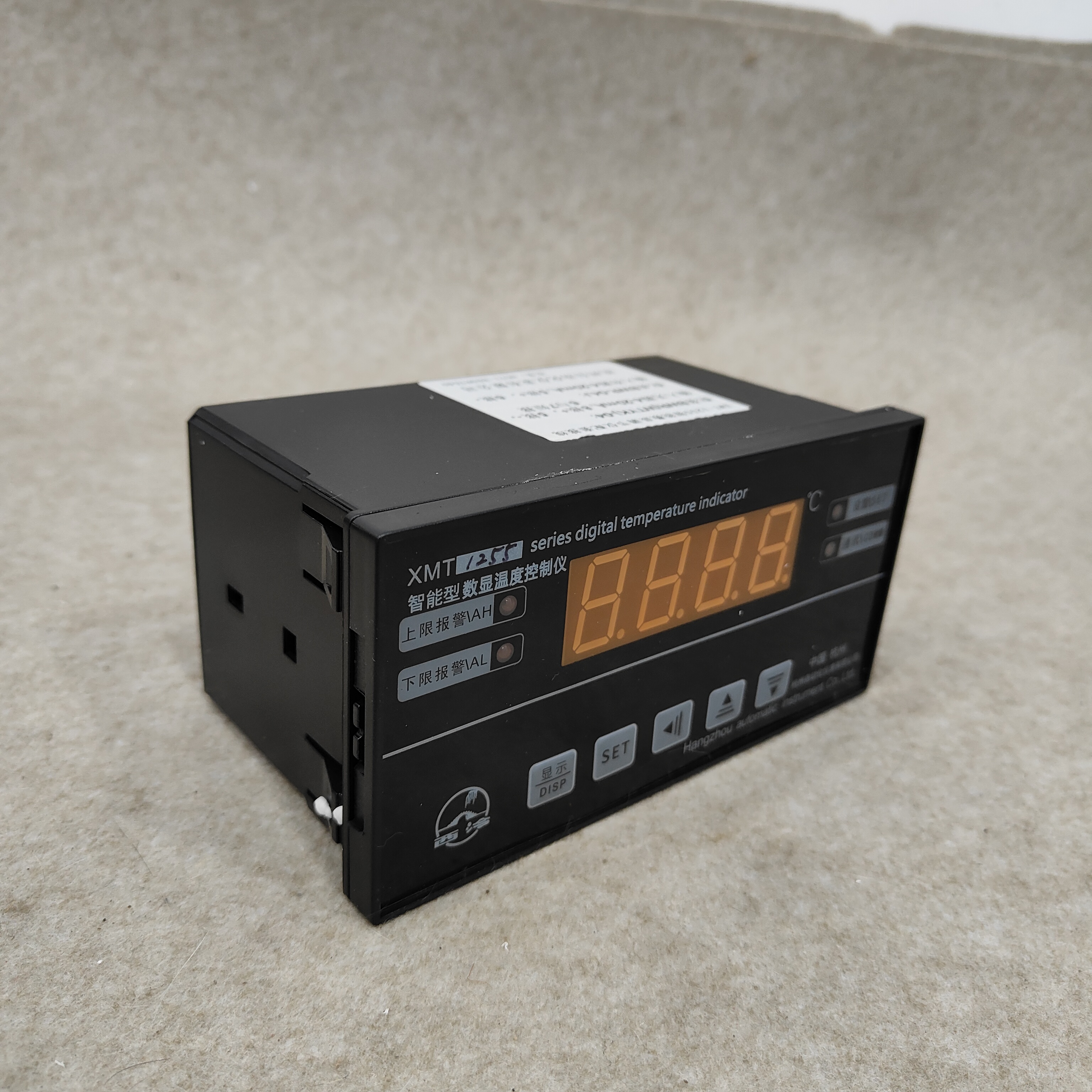

Bộ điều khiển nhiệt độ hiển thị kỹ thuật số Hangzhou automation transformer temperature controller digital display digital display temperature controller XMT-1225 XMT-1255
XMT-1225 0-100°
XMT-1255 0-150°
XMT-1255 0-150°
Tình trạng sản phẩm:
Brand: Hangzhou Automation
Model: XMT-1225 XMT-1255SKU: 201920922112
Working principle: Pressure thermostat
Thermostat temperature range: 100°C
Power: 250V10A
XMT-1225 0-100°, XMT-1255 0-150°
Functions are equivalent to XMT-288FC
This series of temperature controllers are designed by our company for power transformers. They are used together with BWY-802/803/804/806 series oil level temperature controllers and BWR-04 series winding temperature controllers to achieve temperature remote control.
Measuring range: (0-100)℃ or (0-120)℃ or (0-150)℃, consistent with the range of mechanical meters.
Accuracy level: 1.0 level.
Resolution: 0.1℃.
Working power supply: AC220 × (1±10%) V; 50Hz.
Installation method: embedded type;
Display method: three-and-a-half-digit display.
Display error: ±(0.5%F.S+1 word) ±(1%F.S+1 word) second gear
Set point deviation: less than ±1%FS
Control point insensitive area: less than ±0.5%FS
Output signal error: less than ±1%FS
Output contact capacity: AC220V 3A (resistive load)
Industrial power supply: 220V±10% 50Hz, power consumption less than 5W
Working environment: non-corrosive gas with temperature of 0℃-50℃ and relative humidity ≤85%
Overall dimensions: 160×80×150 Opening dimensions: 152 +1 ×76 +1
Weight: Approx. 1.5kg
Digital temperature display and control instrument models, input and output signal comparison table
Model: XMT-1225 XMT-1255SKU: 201920922112
Working principle: Pressure thermostat
Thermostat temperature range: 100°C
Power: 250V10A
XMT-1225 0-100°, XMT-1255 0-150°
Technical parameters
1. Main technical indicators of XMT series digital temperature controller:
(1) Input signal: Pt100
(2) Measuring range: 0～100℃, 0～120℃, 0～150℃, -20～80℃
(3) Accuracy: 1.0
(4) Display mode: 0.8″ 7-segment digital tube
(5) Resolution: 0.1℃
(6) Setting value range: adjustable within the entire range
(7) Leading method: three-wire system
(8) Contact output: The upper and lower limit alarms each have a set of normally open (normally closed) contacts
(9) Contact capacity: 220V/3A (resistive)
(10) Standard signal output:
XMT- has the following signal outputs:
① DC: 0~5V or 1~5V, DC 4~20mA
② Communication interface: RS485, RS232 (XMT-288FC-Ⅱ)
③ When DC 4~20mA output, the allowable load resistance is 250~350Ω.
XMT-1225 and XMT-1224 Series Digital Temperature Display and RegulatorFunctions are equivalent to XMT-288FC
This series of temperature controllers are designed by our company for power transformers. They are used together with BWY-802/803/804/806 series oil level temperature controllers and BWR-04 series winding temperature controllers to achieve temperature remote control.
Measuring range: (0-100)℃ or (0-120)℃ or (0-150)℃, consistent with the range of mechanical meters.
Accuracy level: 1.0 level.
Resolution: 0.1℃.
Working power supply: AC220 × (1±10%) V; 50Hz.
Installation method: embedded type;
Display method: three-and-a-half-digit display.
Display error: ±(0.5%F.S+1 word) ±(1%F.S+1 word) second gear
Set point deviation: less than ±1%FS
Control point insensitive area: less than ±0.5%FS
Output signal error: less than ±1%FS
Output contact capacity: AC220V 3A (resistive load)
Industrial power supply: 220V±10% 50Hz, power consumption less than 5W
Working environment: non-corrosive gas with temperature of 0℃-50℃ and relative humidity ≤85%
Overall dimensions: 160×80×150 Opening dimensions: 152 +1 ×76 +1
Weight: Approx. 1.5kg
Digital temperature display and control instrument models, input and output signal comparison table
| name | model | input signal | output signal | Adjustment method |
| Digital temperature display Regulator | XMT-1224 | Pt100 | (0～5)V or (1～5)V | Three-position adjustment |
| XMT-1225 | (4～20)mA or (0～10)mA | |||
| XMT-122Ⅱ485 | 485 digital signal | |||
| XMT-122Ⅱ232 | 232 digital signal |
