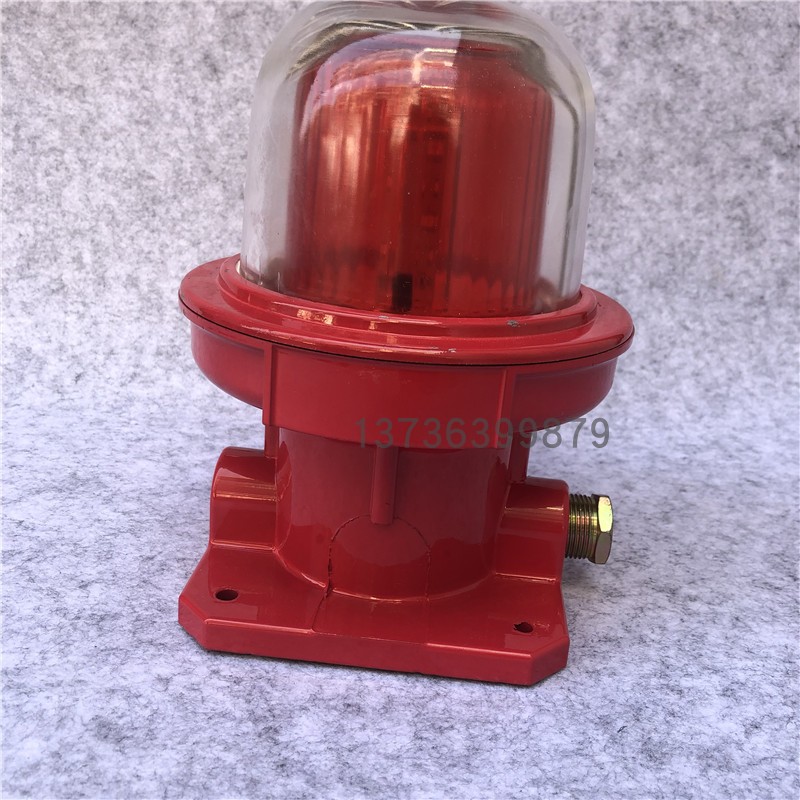

Còi báo động Explosion-proof sound and light alarm BDJ-02 BBJ-2 high decibel voice sound and light alarm alarm speaker 220V

Parameter information

Graphic details

BBJ explosion-proof sound and light alarm application scope

Zone 1 and Zone 2 hazardous locations.

Class ⅡA and ⅡB gas environments.

BBJ explosion-proof sound and light alarm product features

Cast aluminum alloy housing, spray-coated surface.

The tempered glass cover has strong impact resistance and is available in red, yellow, blue and other colors.

Steel pipe or cable wiring is acceptable.

Conforms to GB3836-2000, IEC60079 standards.

BBJ explosion-proof sound and light alarm technical parameters

1. Temperature range: -50℃～+80℃

2. Relative humidity: ≤95%

3. Atmospheric pressure: 80~110KPa

4. Power supply voltage: DC24V AC220V

5. Working current when alarm occurs: DC24V≤700mA, AC220V≤80mA

6. Sound intensity: 95 dB-110 dB

7. Dimensions: 195×130×221(mm)

8. Weight: 2.08kg

9. Protection grade: IP65

10. Transparent lampshade: high-strength polycarbonate: red, blue and other colors

11. Light source: high brightness LED, flashing, rotating light

BBJ explosion-proof sound and light alarm precautions

It is strictly forbidden to dismantle equipment with power on in flammable and explosive places.

Do not damage the explosion-proof surface during installation and keep it clean.

The fastening screws of the explosion-proof surface should be tightened evenly, and care should be taken to ensure that no wires or other foreign objects are mixed in the explosion-proof surface.

The control line should be laid separately from the strong electromagnetic field conductor. If it cannot be avoided, the detection bus cable should use armored cable with shielded wire and ensure that the shielded wire is well grounded.
